| Com-Tech manufactures its own custom made trim presses and also offers Trim Press Rebuild Services. These trim presses are strong, rugged machines that are designed to the customer's specifications. Com-Tech offers a wide range of styles and tonnage, specializing in the 20-100 ton vertical presses. Each presss is custom built for an automated system or as a stand-alone unit. In addition, the controls functionality is flexible to meet the needs of the customer.
|
SHUTTLE BED TRIM PRESS

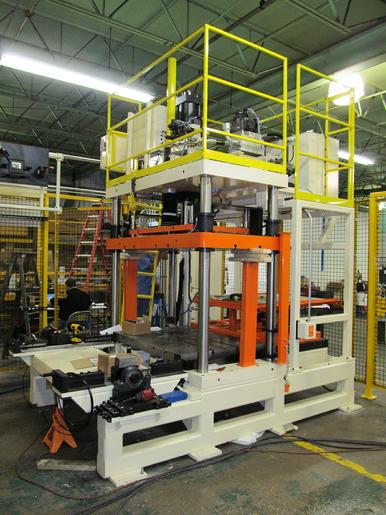

The picture on the right shows our popular shuttle bed trim press. This press is perfect for placing into an automated robotic system. After a part is extracted from a machine, the robot places it onto the shuttle bed. The lower trim die is mounted to the shuttle bed so that it can be moved under the ram. Once the robot is clear of the press, the trim press will retract its shuttle until it is aligned with the top of the trim die. After the shuttle is in position, the ram will cycle to trim the part. While the ram is in cycle, a parts tray will lift and gravity feed the trimmed parts from the previous cycle out of the cell.
Upon the ram completing the cycle, the part tray will lower and the shuttle will extend back to its original position. Once the shuttle is fully extended, a rotary actuator will rotate the die to dump the scrap from the trimmed part. After the scrap is removed, the die will rotate back to its HOME position and wait for a new part.
Advantages to the Shuttle Bed Trim Press Include:
- Less trim die repair due to improved method of scrap removal
- Unlimited overhead clearance for robot to load trim die
- Dies can easily be changed with overhead crane
- Part removal from trim die is integrated into press
- Existing trim dies do not need to be modified for scrap removal
- Less dowtime for robotic loading errors with improved scrap handling
| |
 |
| Click to Enlarge |
|
| |
 |
| Click to Enlarge |
|
|

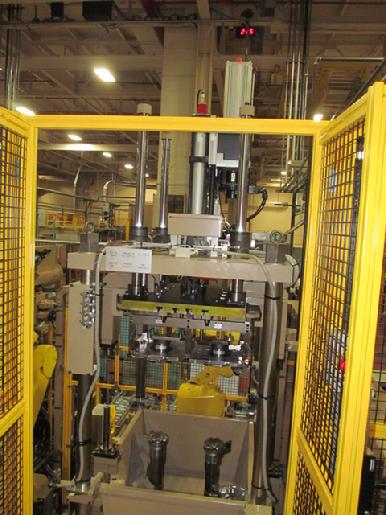

The image at the right is an example of the Manual Trim Presses that ComTech produces. The press is built to give maintenance free production with safety in mind.
The press is powered by a hydraulic unit that has the capability to offer multiple ram speeds.
Our Manual Trim Press can either be loaded by an operator or placed into an automated cell. We offer an optional part removal chute if the Trim Press is automated.
Standard Items:
- Allen Bradley or Mitsubishi PLC
- 4 Limit Switches for ram positions
- 8-10 second cycle time
- Wired to run (2) trim die cores
- Pushbutton Manual Controls
Optional Items:
- LVDT for ram positioning versus (4) limit switches
- Electric Ram Cylinder versus hydraulics (Can save $7,000 per year in energy costs)
- Hydraulic Ejection Plate
- Proportional Pressure valve for infinite pressures of system
- Operator Interface for manual funtcionality and advanced alarm messages
- Parts Chute to unload part from upper die
|
 |

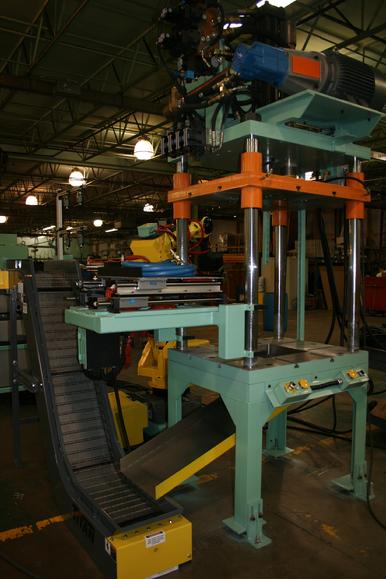

| 40 Ton Manual Trim Press with scrap conveyor |
|
|
|
